API Investment Casting Flanged Floating Ball Valve
Home > Products > Others Investment Casting > API Investment Casting Flanged Floating Ball Valve

API Investment Casting Flanged Floating Ball Valve


  • API Investment Casting Flanged Floating Ball Valve
  • API Investment Casting Flanged Floating Ball Valve
  • API Investment Casting Flanged Floating Ball Valve
  • API Investment Casting Flanged Floating Ball Valve
  • API Investment Casting Flanged Floating Ball Valve
  • API Investment Casting Flanged Floating Ball Valve

API Investment Casting Flanged Floating Ball Valve

    Min. Order: 2 Piece/Pieces
    Packaging: plywood case
    Brand: OEM
    Transportation: Ocean,Air,Express,Express
    Place of Origin: China
    Supply Ability: 50000
    Certificate: ISO9001
    HS Code: 8481804090
    Port: Ningbo,Shanghai

Basic Info

Model No.: Q41F

Product Description



JIS 2PC Flange Stainless Steel Ball Valve with ISO5211 Mounting Pad

Product Feature:
1. Floating ball, full bore

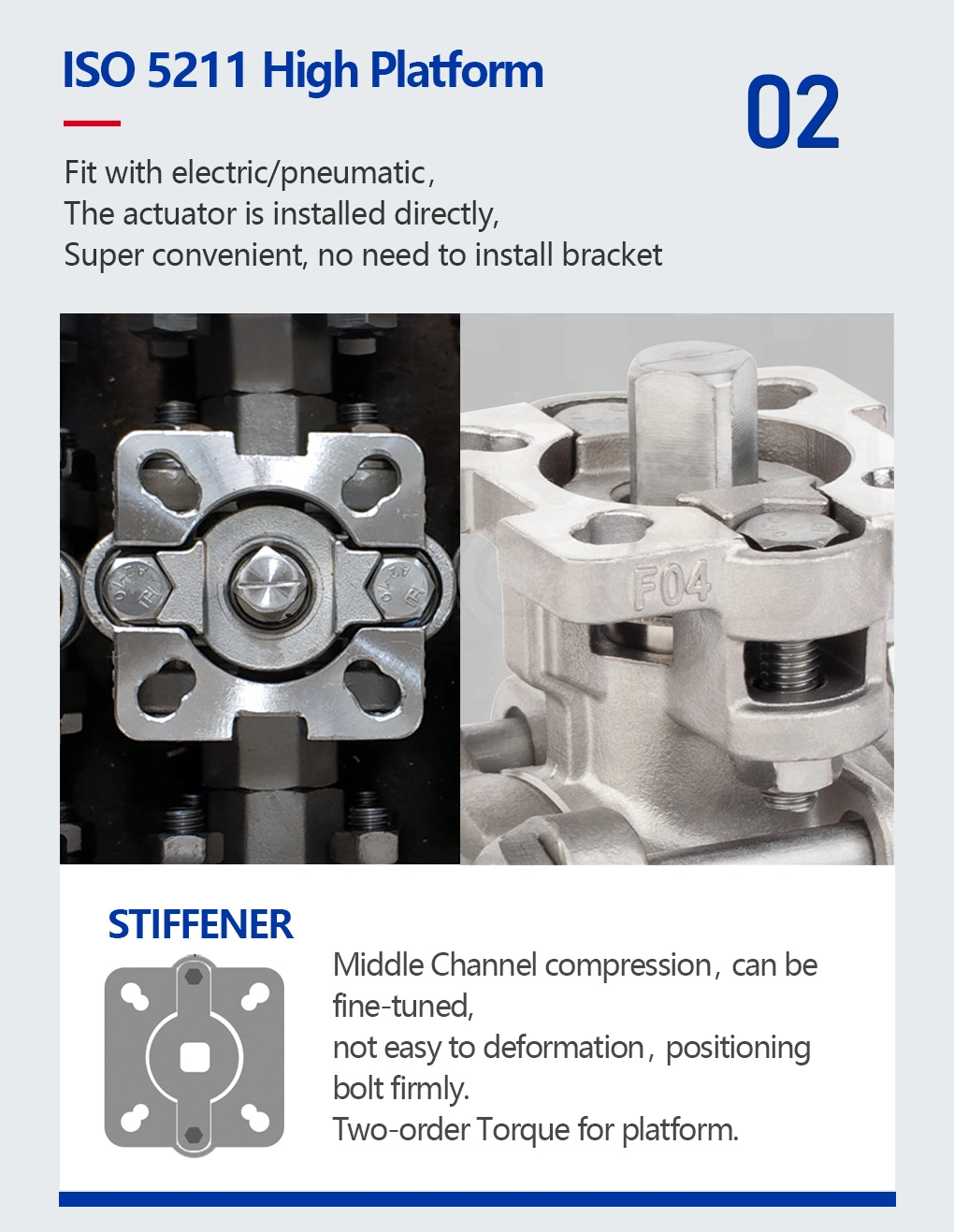

2. ISO5211 mounting pad for easy automation.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.

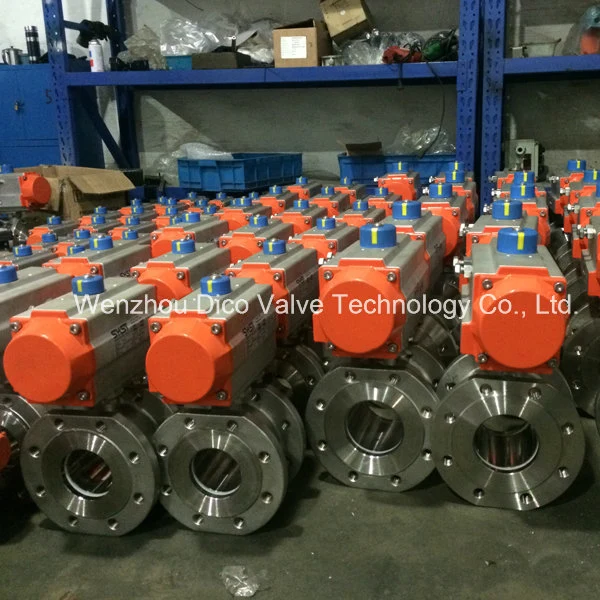

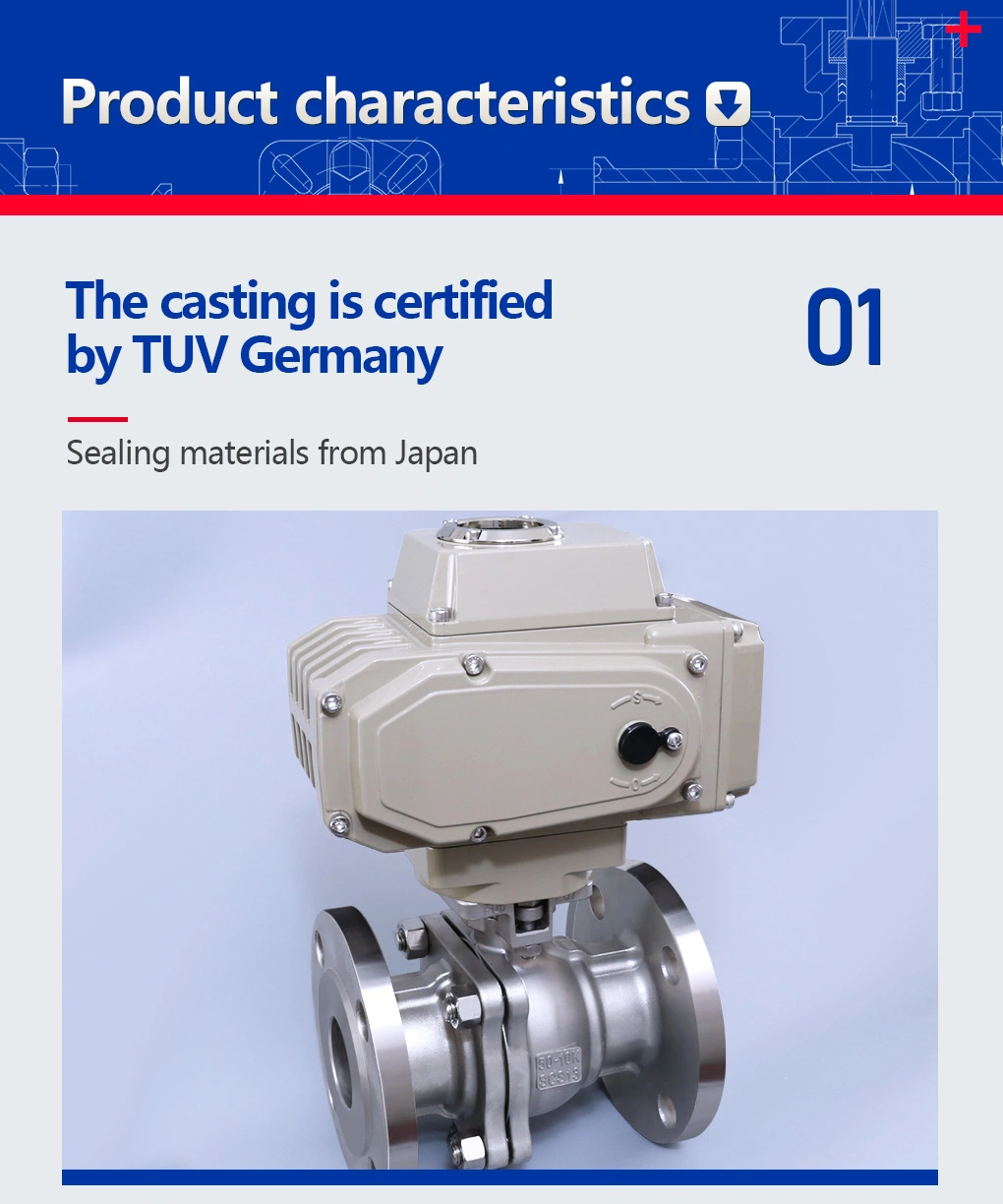

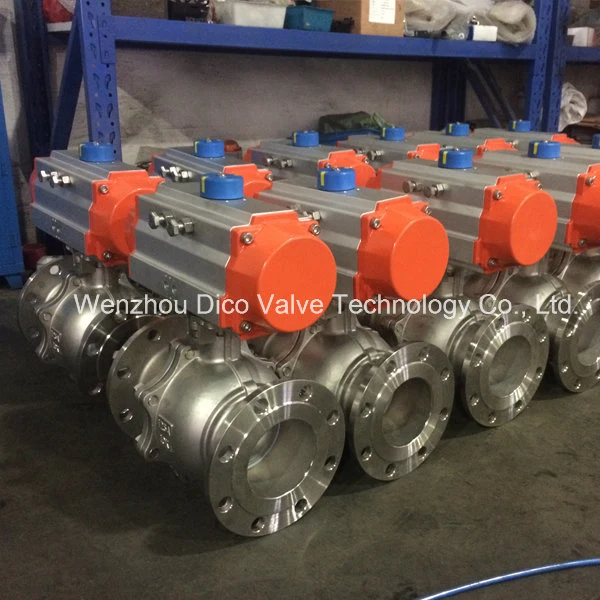

6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.


Product Name 3 PC Stainless Steel Flange Ball Valve 150LB 300LB 600LB
1. Material A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC
2. Size 1/2''~10'' ( DN15~DN250)
3. Certificate ISO9001 & CE
4. Port Full Port
5. Working Pressure 150LB~600LB
6. Connection Ends Flange(RF/RTJ)
7. Working Temp. -196ºC~450ºC
8. Suitable Medium Water, Steam, Oil and natural gas etc.
9. Seal PTFE, RPTFE, PPL
10. Locking Option
11. Inspection & Testing According to API598
Shipment
Delivery Time 15~30 Days
Package Standard Exporting Plywood Case
Shipping Port Ningbo/Shanghai, China
Shipping Terms EXW, FOB, CFR, CIF, etc.
Payment Terms T/T, Western Union, PayPal, etc.
30% prepayment, 70% balance paid before shipping or against copy of BL
Warranty 18 Months after leaving factory
Advantage OEM/ODM is applicable
Others We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer
Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.



API Flange ball valve
API Flange ball valve


API Flange ball valve

API Flange ball valveAPI Flange ball valveAPI Flange ball valve

API Flange ball valve
API Flange ball valve
API Flange ball valve
API Flange ball valve


Q:Why choose us ?
A: we are a manufacturer, we have been manufacturing ball valve 15 years .

Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.

Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: Can I get samples from your factory?
A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.

Q:How about your capacity?

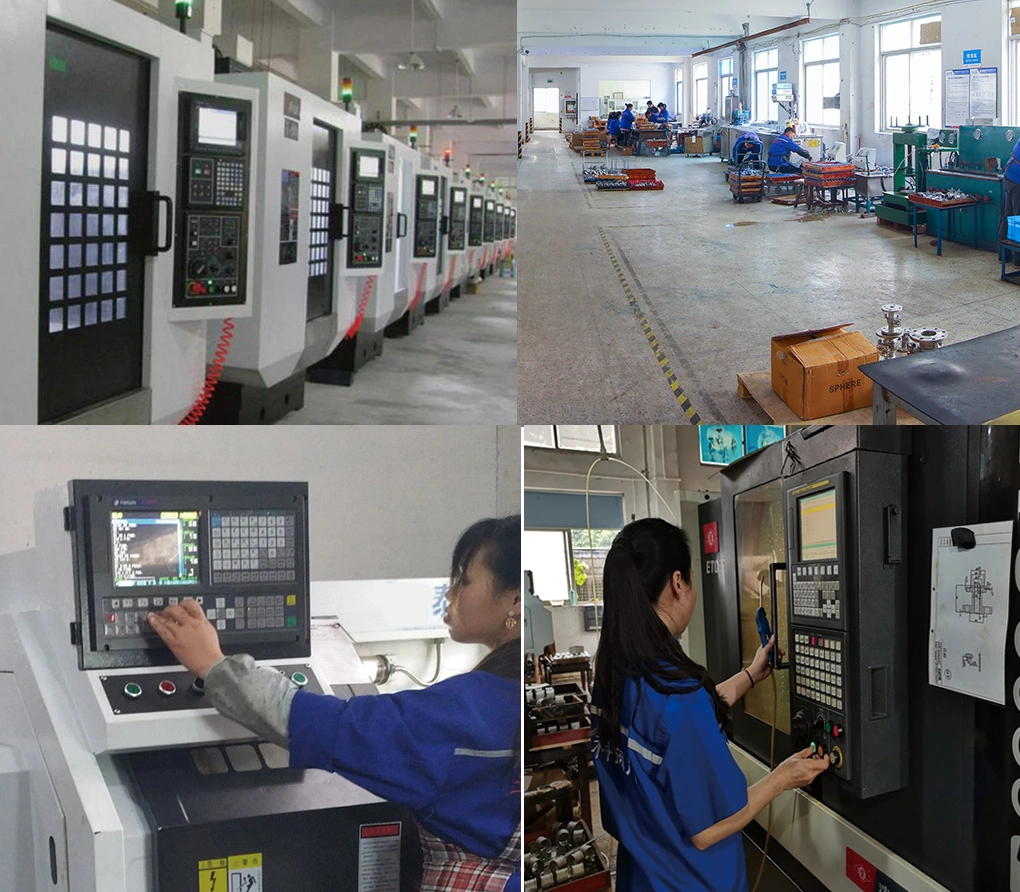

A:As you know,we have 100staffs,own 50 CNC machines,and five person
in charge of quality inspection. So please believe us we can deliver valves as your order.
