CZ Interchange Purlin Roll Forming Machine
Home > Products > Gear And Chain > CZ Interchange Purlin Roll Forming Machine

CZ Interchange Purlin Roll Forming Machine


  • CZ Interchange Purlin Roll Forming Machine
  • CZ Interchange Purlin Roll Forming Machine
  • CZ Interchange Purlin Roll Forming Machine
  • CZ Interchange Purlin Roll Forming Machine
  • CZ Interchange Purlin Roll Forming Machine

CZ Interchange Purlin Roll Forming Machine

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Standard Package or According To Customer's Requirement
    Productivity: 30 Sets Per Month
    Brand: TG
    Transportation: Ocean
    Place of Origin: Hebei Province, China
    Supply Ability: 30 Sets Per Month
    Certificate: CE, ISO, SGS
    HS Code: 84552210
    Port: TianJin

Basic Info

Model No.: TG-0002

Product Description

Our company can supply complete CZ Interchange Purlin Roll Forming Machine production lines and machines according to your requirement. We supply many different sizes of C/Z Purlin Roll Forming Machine with our auxiliary equipment. We have gained a good evaluation from users because of advanced technology, perfect quality and after-sale service. The fully automatic CZ Purlin Machine can produce various specifications of C/Z purlin through automatic stepless adjustment with the same set of equipment. It is not necessary to replace the molding roll when changing the specification. Automatic control mode is adopted in the production process, which can automatically punch, cut and shape purlins according to the input parameters such as length, longitudinal hole spacing and quantity.

Purlin Roll Forming Machine can produce many different sizes of the finished CZ production, CZ Interchange Purlin Machine is interchangeable with CZ two shapes. Easy to operate, and save time, save labor, C/Z Purlin Machine forming speed about 20-30m/min.

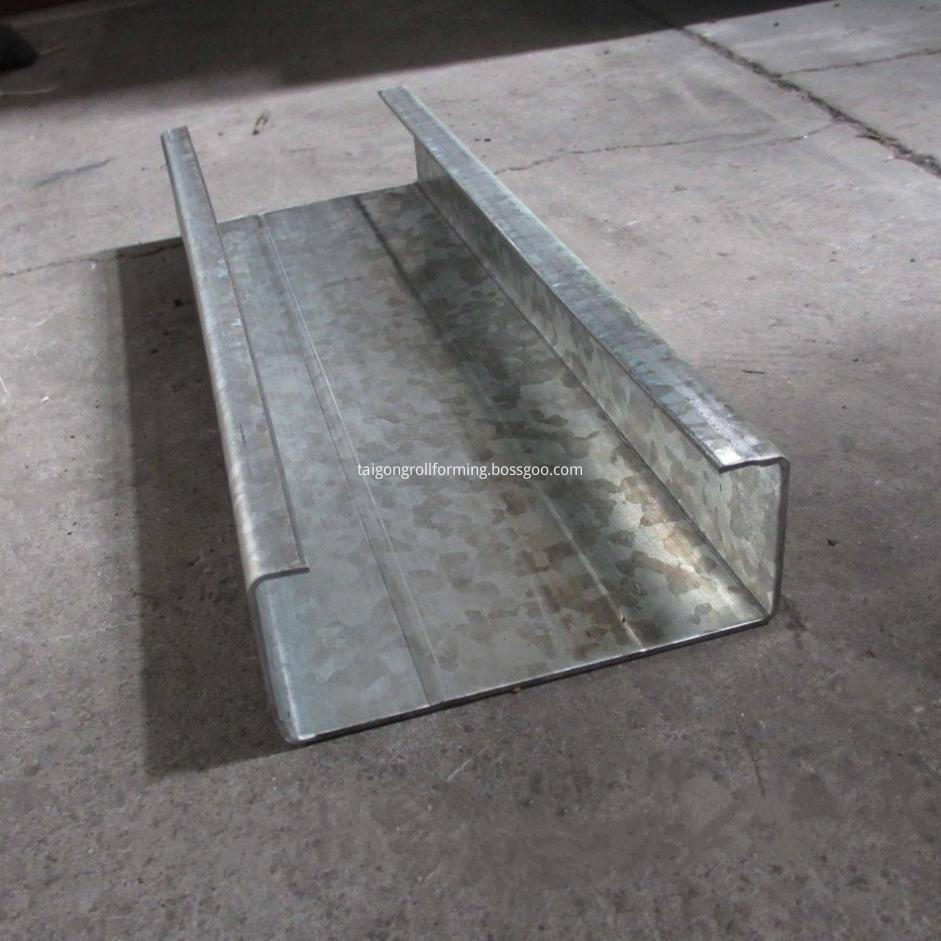

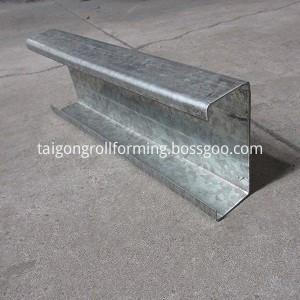

1. Profile Drawing and Products for Reference

C Purlin Roll Forming MachinePurlin Roll Forming Machine

2. The Chart of Process flow

De-coiler--- Guiding-- Roll forming--- Hydraulic Cutter- Output Table

CZ Interchange Purlin Machine

Z Purlin Roll Forming Machine

3. The equipment including

CZ Interchange Purlin Roll Forming Machine

1 set

Electrical control system

1 set

Hydraulic system

1 set

Manual de-coiler

1 set

Leveling machine

1 set

Servo feeding machine

1 set

Press machine

1 set

Cutting device

1 set



4. Purlin Making Forming Machine Details

1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
2. Working Speed: 12-15 meters / min
3. Forming Steps: 19 stations, drive by gear boxes
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
7. Main Power with reducer: 22KW WH Chinese Famous
8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand

11. The whole machine is controlled by industry computer-PLC
12. PLC--Panasonic, Japan English and Chinese Language
13. Touch Screen--Panasonic Japan
14. Encoder--Omron, Japan

5. Machine Overview


Purlin Roll Forming MachineCZ Purlin Roll Forming Machine


6. Scene application

Steel Purlin Roll Forming Machine


7. Customer

Steel Purlin Machine

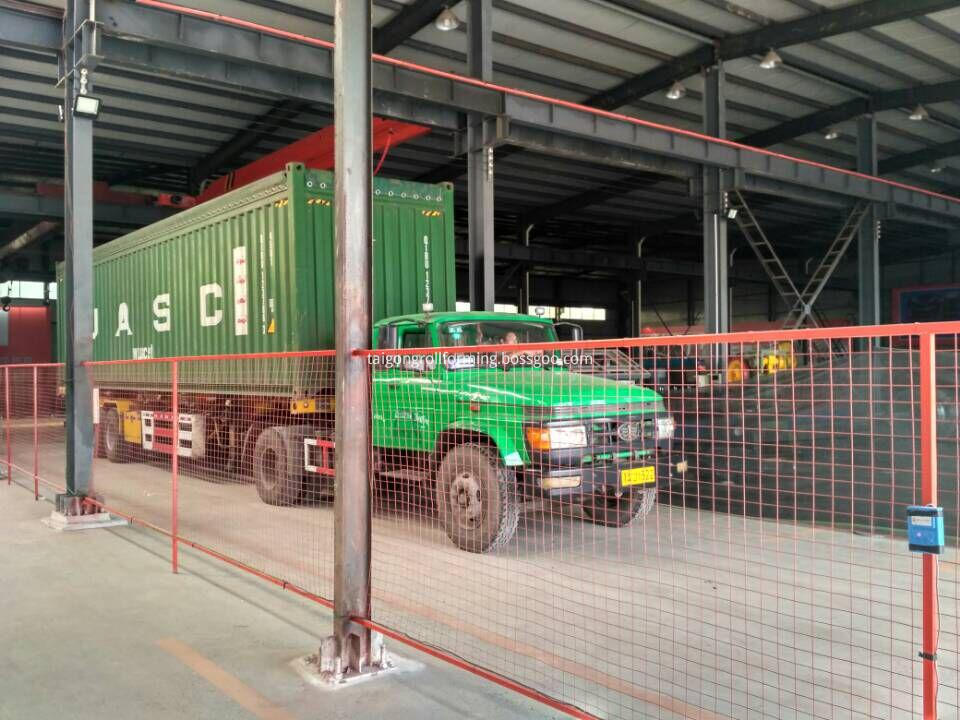

8. Package:

Steel Purlin Roll Forming Machine
































9. Our Services

1. Warranty : One year, and we will provide technical support for whole life of the Steel Purlin Roll Forming Machine

2. Delivery time: Within 30 days after deposit receipt your payment

3. Guarantee period: 1 year free service/ pay service all the machine life

4. Installation and training If buyers visit our factory and check the Steel Purlin Machine

We will teach you how to install and use the Purlin Roll Forming Machine and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

Our Main Products include Stud Track Roll Forming Machines, Steel Frame Forming Machines, Purlin Roll Forming Machines, Welded Pipe Making Machines, Highway Guardrail Roll Forming Machines, Metal Expanded Mesh Production Lines and so on. If you have any further question of our Cold Roll Forming Machine, please feel free to contact me.

Hebei Taigong Roll Forming Machinery Co., Ltd.

 Hebei Taigong Machinery Co.,Ltd. was found in 1999, we are a top professional Cold Roll Forming Machine manufacturer engaged in designing and producing all types of high precision, hight tech, professionally designed. Using advanced technology and incorporating COPRA design software, we are able to manufacture to international standards for our clients. Cold Roll Forming Machine produced by TAIGONG, uses an advanced drive system. The complete system is integrated into a single unit, saving space, and improving the ease of use, and the safe operation of the Cold Roll Forming Machine. All the electrical and mechanical parts are readily available world wide.The Cold Roll Forming Machine are robust, and will with proper care and maintenance perform at maximum capacity. Our company is located in Cangzhou ,Hebei province, near major roads for ease of shipping. Main product include Purlin Roll Forming Machine, Highway Guardrail Roll Forming Machine, Spiral Corrugated Pipe Machine, Rib Lath Machine, Grain Bin Silo Machine, Metal Culvert Pipe Machine and so on.
